WPC fluted wall panels have become one of the most sought-after wall cladding solutions in modern interior design. With their elegant texture, long-lasting durability, and hassle-free maintenance, these panels make it easy to transform any room be it your living room, hallway, office, or ceiling into a statement of refined taste.
If you’re planning to install WPC fluted wall panels in your home or commercial space, this guide walks you through the entire installation process, from preparation to finishing, so you can achieve a professional-grade result even with minimal DIY experience.
What Are WPC Fluted Wall Panels?
WPC (Wood Plastic Composite) fluted wall panels are made from a blend of recycled wood fiber and plastic resin, engineered to mimic the warmth of wood while offering superior resistance to moisture, warping, termites, and mold. The fluted (ribbed) texture enhances acoustic properties and creates a visually dynamic surface that suits a variety of design styles from minimalist to modern luxe.

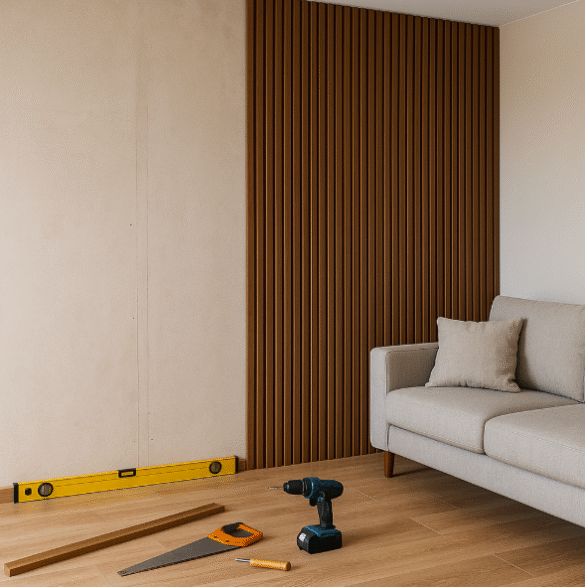

Tools & Materials You’ll Need
Before you begin the installation, gather the following:
Tools:
- Measuring tape
- Level
- Pencil
- Handsaw or circular saw
- Electric drill
- Spirit level
- Rubber mallet
- Caulking gun (if using adhesive)
Materials:
- WPC fluted wall panels
- Starter/base clips
- Screws or wall plugs
- Adhesive (optional)
- Trim or corner profiles
- Cleaning cloth
Step-by-Step Installation Guide
 |
|
Step 1: Measure Your Wall Area
Start by measuring the height and width of the area where you plan to install the panels. Multiply the two to calculate the square footage, then add an extra 10–15% to cover offcuts and mistakes.
Tip: Ensure the wall surface is dry, clean, and free from dust, grease, or paint flakes before beginning installation.
Step 2: Plan Your Layout
Dry-lay a few panels on the floor or against the wall to get a feel for how the final arrangement will look. This step allows you to decide:
- Panel direction (vertical or horizontal)
- Alignment type (centered or edge-based)
- Where to place the first panel (from a corner, middle, or specific feature)
This planning prevents misalignment and ensures a symmetrical finish.
Step 3: Mark Your Starting Line
Use a level and pencil to draw a straight vertical or horizontal line (depending on orientation) as your starting guide. This line will ensure the first panel is perfectly aligned, which is critical for the rest of the installation.
Step 4: Fix the Starter Clips (Optional)
If your WPC fluted panels come with a tongue-and-groove interlocking system, you may need to install starter clips at the bottom edge or along the wall to support the first panel.
- Position the starter clips at regular intervals (about every 40–60 cm).
- Use screws or plugs to secure them to the wall.
This technique is common for ceiling or high-mounted installations.
Step 5: Apply Adhesive (If Needed)
If you’re using adhesive for a glue-on installation, apply a zigzag pattern of high-strength construction adhesive on the back of the panel.
Press the panel firmly against the wall and hold it in place for a few seconds. Continue pressing along the length with your hand or rubber mallet to ensure full contact.
Note: Adhesive is best used on clean, flat surfaces like drywall, plywood, or MDF not on uneven or damp walls.
Step 6: Install the First Panel
Place the first panel against your marked line and secure it either:
- With screws through the side flanges (usually hidden by the next panel), or
- By adhesive if you’re going for a nail-free aesthetic.
Double-check alignment using a level before proceeding.
 |
|
Step 7: Install Subsequent Panels
Slide the next panel into the groove of the previous one. If using adhesive, follow the same glue-and-press method.
For mechanical fastening:
- Drive screws into the edge flange of each new panel so the next one can hide them.
- Maintain consistent spacing if expansion gaps are required by the manufacturer.
Continue this process across the entire wall, checking level alignment every few panels.
Step 8: Cut Panels to Fit
At corners, windows, sockets, or the end of the wall, you’ll need to cut the panels to fit.
- Use a handsaw or circular saw with a fine-tooth blade to ensure clean edges.
- Always measure twice and cut once.
- For outlets, use a jigsaw to cut square or rectangular holes.
Step 9: Install Edge and Corner Trims
Once the panels are up, add trims and edge profiles for a polished look.
- Use L-trims, corner trims, or end caps to conceal raw panel edges and create a seamless transition between walls, ceilings, or floor levels.
- Attach trims using adhesive or tiny finish nails.
Step 10: Final Touches & Cleaning
Inspect the wall for any gaps or loose panels. Seal minor gaps or transitions with matching caulk or sealant for a clean finish.
Wipe down the surface with a dry or damp microfiber cloth to remove dust, fingerprints, or adhesive residue.
Pro Tips for a Perfect Finish
- Acclimate Panels: Let the panels rest in the installation space for 24–48 hours before mounting to adjust to humidity and temperature.
- Expansion Gaps: Leave a small gap (typically 3–5 mm) at the top and bottom to allow for natural expansion.
- Ceiling Installation? Start from the corner closest to a natural light source for the most even aesthetic.
- LED Integration: Consider embedding LED strip lights between panels or around the border to enhance texture and ambiance.
Where Can You Use WPC Fluted Wall Panels?
These panels aren’t just for feature walls! Here’s where they shine:
- Living rooms: Behind TV units or sofas
- Bedrooms: As stylish headboard backdrops
- Hallways: To add depth and character
- Ceilings: For architectural interest
- Home offices: Behind workstations
- Retail or hospitality: In lobbies, reception desks, or display areas
Why Choose WPC Panels Over Traditional Materials?
|
Feature |
WPC Fluted Panels |
Natural Wood |
PVC Panels |
|
Moisture Resistance |
✅ Excellent |
❌ Poor |
✅ Good |
|
Maintenance |
✅ Low |
❌ High |
✅ Low |
|
Aesthetic Appeal |
✅ Modern, textured |
✅ Warm, classic |
⚠️ Often flat/plain |
|
Installation Ease |
✅ DIY-friendly |
❌ Often complex |
✅ Easy |
|
Eco-Friendliness |
✅ Made from recyclables |
⚠️ Depends on source |
❌ Often synthetic |
Final Thoughts
Installing WPC fluted wall panels is one of the most impactful ways to revamp your interior. Whether you’re tackling a single accent wall or giving a whole room a modern makeover, this guide equips you with everything you need for a smooth, professional-quality result.
These panels are more than just decorative they’re functional, stylish, and sustainable, making them a smart investment for the future of home design.
